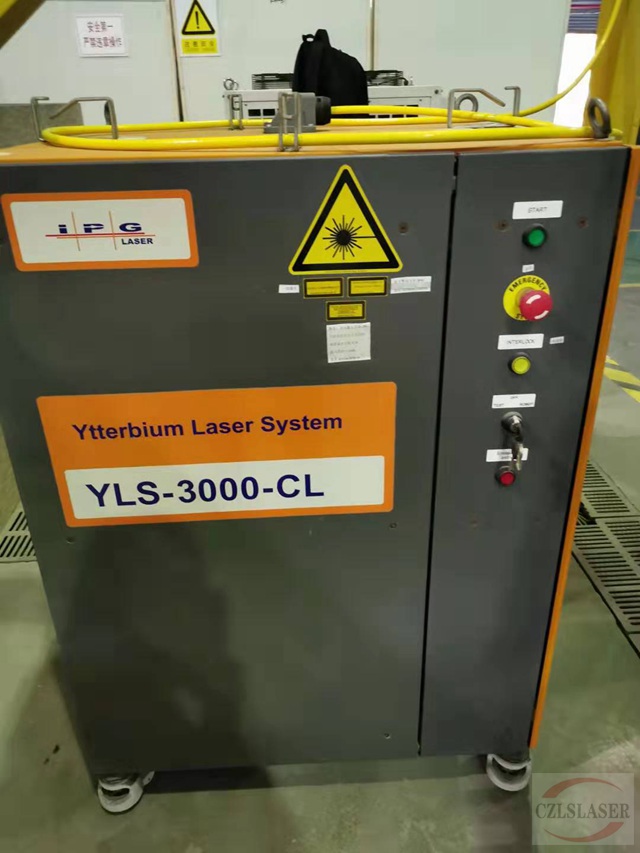

3000瓦IPG光纤激光器维修

信息编辑:常州镭烁光电 更新时间:2019-09-04 20:49:17 点击数:

大功率IPG光纤激光器维修  现场检测确定故障、与客户沟通维修方案后进行维修。

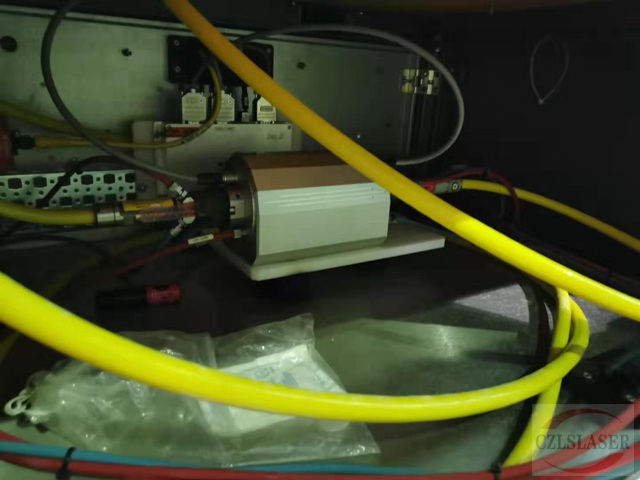

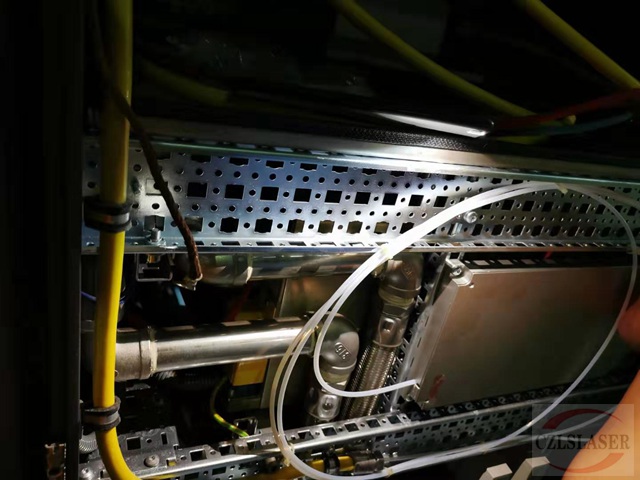

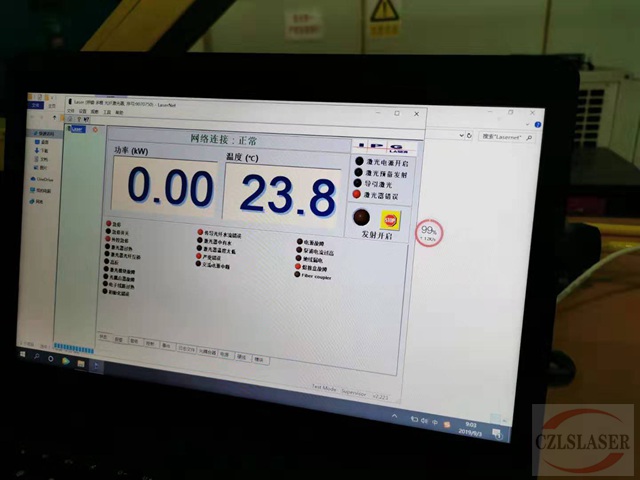

故障现象:lasernet软件的Alarms窗口(见下图),发现设备有两处报警:1. Splice box failure; 2. Critical error.



lasernet导出来的日志
0 | 01:00000008 | I | Laser ready                                                  |  4.08.09   15:25:23 |  4.08.09   15:28:16
    1 | 01:00000100 | I | Hardwiring active                                            |  4.08.09   15:25:23 | laser off
    2 | 01:00001000 | I | Main power supply ON                                         |  4.08.09   15:25:23 |  4.08.09   15:28:16
    3 | 01:00004000 | I | Beam coupler ready                                           |  4.08.09   15:25:23 | laser off
    4 | 01:00008000 | I | Service mode                                                 |  4.08.09   15:25:23 | laser off
    5 | 01:00080000 | I | Beam coupler : laser permission                              |  4.08.09   15:25:23 | laser off
    6 | 01:00100000 | I | Beam coupler : laser enable                                  |  4.08.09   15:25:23 | laser off
    7 | 01:00000080 | I | Emission enable                                              |  4.08.09   15:25:32 |  4.08.09   15:28:15
    8 | 01:40000000 | I | Laser "Standby"                                              |  4.08.09   15:28:16 |  4.08.09   15:28:51
    9 | 02:00000040 | E | E-Stop                                                       |  4.08.09   15:28:51 |  4.08.09   15:30:20
   10 | 02:80000000 | E | E-Stop external                                              |  4.08.09   15:28:52 |  4.08.09   15:30:20
   11 | 01:40000000 | I | Laser "Standby"                                              |  4.08.09   15:30:20 |  4.08.09   15:30:22
   12 | 01:00000008 | I | Laser ready                                                  |  4.08.09   15:30:24 |  4.08.09   15:42:11
   13 | 01:00001000 | I | Main power supply ON                                         |  4.08.09   15:30:24 |  4.08.09   15:42:11
   14 | 01:00000080 | I | Emission enable                                              |  4.08.09   15:30:28 |  4.08.09   15:42:11
   15 | 01:40000000 | I | Laser "Standby"                                              |  4.08.09   15:42:11 |  4.08.09   15:42:11
   16 | 02:00000040 | E | E-Stop                                                       |  4.08.09   15:42:11 |  4.08.09   15:46:19
   17 | 02:80000000 | E | E-Stop external                                              |  4.08.09   15:42:11 |  4.08.09   15:46:19
   18 | 01:40000000 | I | Laser "Standby"                                              |  4.08.09   15:46:19 |  4.08.09   15:47:33
   19 | 02:00000040 | E | E-Stop                                                       |  4.08.09   15:47:33 |  4.08.09   15:48:02
   20 | 02:80000000 | E | E-Stop external                                              |  4.08.09   15:47:34 |  4.08.09   15:48:02
   21 | 01:40000000 | I | Laser "Standby"                                              |  4.08.09   15:48:02 |  4.08.09   15:48:37
   22 | 01:00000008 | I | Laser ready                                                  |  4.08.09   15:48:40 |  4.08.09   15:50:20
   23 | 01:00001000 | I | Main power supply ON                                         |  4.08.09   15:48:40 |  4.08.09   15:50:20
   24 | 01:00000002 | I | External control                                             |  4.08.09   15:48:41 |  4.08.09   15:50:22
   25 | 01:00000040 | I | Analog control                                               |  4.08.09   15:48:41 |  4.08.09   15:50:22
   26 | 01:00000080 | I | Emission enable                                              |  4.08.09   15:48:43 |  4.08.09   15:50:20
   27 | 02:00000040 | E | E-Stop                                                       |  4.08.09   15:50:20 | laser off
   28 | 02:80000000 | E | E-Stop external                                              |  4.08.09   15:50:21 | laser off
   29 | 01:00200000 | I | Key on "hardwiring" position                                 |  4.08.09   15:51:02 | laser off
   30 | 00:00000000 | I | Laser ON                                                     |  4.08.09   15:57:43 | laser off
   31 | 02:00000040 | E | E-Stop                                                       |  4.08.09   15:57:43 | laser off
   32 | 02:80000000 | E | E-Stop external                                              |  4.08.09   15:57:43 | laser off
   33 | 01:00000100 | I | Hardwiring active                                            |  4.08.09   15:57:43 | laser off
   34 | 01:00004000 | I | Beam coupler ready                                           |  4.08.09   15:57:43 | laser off
   35 | 01:00080000 | I | Beam coupler : laser permission                              |  4.08.09   15:57:43 | laser off
   36 | 01:00100000 | I | Beam coupler : laser enable                                  |  4.08.09   15:57:43 | laser off
   37 | 01:00008000 | I | Service mode                                                 |  4.08.09   16:16:45 | laser off
   38 | 01:00200000 | I | Key on "hardwiring" position                                 |  4.08.09   16:17:19 | laser off
   39 | 00:00000000 | I | Laser ON                                                     |  4.08.09   16:29:00 | laser off
   40 | 02:00000040 | E | E-Stop                                                       |  4.08.09   16:29:00 |  4.08.09   16:32:28
   41 | 02:80000000 | E | E-Stop external                                              |  4.08.09   16:29:00 |  4.08.09   16:30:29
   42 | 01:00000100 | I | Hardwiring active                                            |  4.08.09   16:29:00 | laser off
   43 | 01:00004000 | I | Beam coupler ready                                           |  4.08.09   16:29:00 | laser off
   44 | 01:00080000 | I | Beam coupler : laser permission                              |  4.08.09   16:29:00 | laser off
   45 | 01:00100000 | I | Beam coupler : laser enable                                  |  4.08.09   16:29:00 | laser off
   46 | 02:20000000 | E | E-Stop button                                                |  4.08.09   16:30:29 |  4.08.09   16:30:32
   47 | 02:20000000 | E | E-Stop button                                                |  4.08.09   16:30:32 |  4.08.09   16:30:32
   48 | 02:80000000 | E | E-Stop external                                              |  4.08.09   16:30:33 |  4.08.09   16:30:49
   49 | 02:20000000 | E | E-Stop button                                                |  4.08.09   16:30:49 |  4.08.09   16:30:51
   50 | 02:80000000 | E | E-Stop external                                              |  4.08.09   16:30:51 |  4.08.09   16:31:18
   51 | 01:00000010 | E | Rear door open                                               |  4.08.09   16:31:18 |  4.08.09   16:31:19
   52 | 02:80000000 | E | E-Stop external                                              |  4.08.09   16:31:19 |  4.08.09   16:32:28
   53 | 01:40000000 | I | Laser "Standby"                                              |  4.08.09   16:32:28 |  4.08.09   16:32:32
   54 | 02:00000040 | E | E-Stop                                                       |  4.08.09   16:32:35 |  4.08.09   16:32:35
   55 | 02:80000000 | E | E-Stop external                                              |  4.08.09   16:32:35 |  4.08.09   16:32:35
   56 | 01:40000000 | I | Laser "Standby"                                              |  4.08.09   16:32:35 |  4.08.09   16:32:38
   57 | 01:00000008 | I | Laser ready                                                  |  4.08.09   16:32:40 |  5.08.09    7:02:31
   58 | 01:00001000 | I | Main power supply ON                                         |  4.08.09   16:32:40 |  5.08.09    7:02:31
   59 | 01:00000080 | I | Emission enable                                              |  4.08.09   16:33:19 |  4.08.09   16:33:47
   60 | 01:00008000 | I | Service mode                                                 |  4.08.09   16:33:52 | laser off
   61 | 01:00000080 | I | Emission enable                                              |  4.08.09   16:34:07 |  4.08.09   16:34:35
   62 | 01:00000080 | I | Emission enable                                              |  4.08.09   16:35:09 |  5.08.09    7:02:31
   63 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    7:02:31 |  5.08.09    7:04:06
   64 | 01:00000008 | I | Laser ready                                                  |  5.08.09    7:04:09 |  5.08.09    7:15:56
   65 | 01:00001000 | I | Main power supply ON                                         |  5.08.09    7:04:09 |  5.08.09    7:15:56
   66 | 01:00000080 | I | Emission enable                                              |  5.08.09    7:04:12 |  5.08.09    7:15:56
   67 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    7:15:56 |  5.08.09    7:18:19
   68 | 01:00000008 | I | Laser ready                                                  |  5.08.09    7:18:21 |  5.08.09    7:31:14
   69 | 01:00001000 | I | Main power supply ON                                         |  5.08.09    7:18:21 |  5.08.09    7:31:14
   70 | 01:00000002 | I | External control                                             |  5.08.09    7:18:22 |  5.08.09    7:31:14
   71 | 01:00000040 | I | Analog control                                               |  5.08.09    7:18:22 |  5.08.09    7:31:14
   72 | 01:00000080 | I | Emission enable                                              |  5.08.09    7:18:22 |  5.08.09    7:31:14
   73 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    7:31:14 |  5.08.09    7:34:53
   74 | 01:00000008 | I | Laser ready                                                  |  5.08.09    7:34:56 |  5.08.09    7:46:43
   75 | 01:00001000 | I | Main power supply ON                                         |  5.08.09    7:34:56 |  5.08.09    7:46:43
   76 | 01:00000080 | I | Emission enable                                              |  5.08.09    7:34:59 |  5.08.09    7:46:43
   77 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    7:46:43 |  5.08.09    7:53:09
   78 | 01:00000008 | I | Laser ready                                                  |  5.08.09    7:53:12 |  5.08.09    8:04:58
   79 | 01:00001000 | I | Main power supply ON                                         |  5.08.09    7:53:12 |  5.08.09    8:04:58
   80 | 01:00000080 | I | Emission enable                                              |  5.08.09    7:53:16 |  5.08.09    8:04:58
   81 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    8:04:58 |  5.08.09    8:10:33
   82 | 01:00000008 | I | Laser ready                                                  |  5.08.09    8:10:36 |  5.08.09    8:14:23
   83 | 01:00001000 | I | Main power supply ON                                         |  5.08.09    8:10:36 |  5.08.09    8:14:23
   84 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:10:36 |  5.08.09    8:14:23
   85 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    8:14:23 |  5.08.09    8:16:22
   86 | 02:00000040 | E | E-Stop                                                       |  5.08.09    8:16:22 |  5.08.09    8:18:26
   87 | 02:80000000 | E | E-Stop external                                              |  5.08.09    8:16:23 |  5.08.09    8:18:26
   88 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    8:18:26 |  5.08.09    8:20:12
   89 | 01:00000008 | I | Laser ready                                                  |  5.08.09    8:20:15 |  5.08.09    8:20:23
   90 | 01:00001000 | I | Main power supply ON                                         |  5.08.09    8:20:15 |  5.08.09    8:20:23
   91 | 01:00000002 | I | External control                                             |  5.08.09    8:20:18 |  5.08.09    8:20:21
   92 | 01:00000040 | I | Analog control                                               |  5.08.09    8:20:18 |  5.08.09    8:20:21
   93 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:20:18 |  5.08.09    8:20:21
   94 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    8:20:23 |  5.08.09    8:20:46
   95 | 01:00000008 | I | Laser ready                                                  |  5.08.09    8:20:49 |  5.08.09    8:20:57
   96 | 01:00001000 | I | Main power supply ON                                         |  5.08.09    8:20:49 |  5.08.09    8:20:57
   97 | 01:00000002 | I | External control                                             |  5.08.09    8:20:52 |  5.08.09    8:20:55
   98 | 01:00000040 | I | Analog control                                               |  5.08.09    8:20:52 |  5.08.09    8:20:55
   99 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:20:52 |  5.08.09    8:20:55
  100 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    8:20:57 |  5.08.09    8:21:30
  101 | 01:00000008 | I | Laser ready                                                  |  5.08.09    8:21:33 |  5.08.09    8:21:40
  102 | 01:00001000 | I | Main power supply ON                                         |  5.08.09    8:21:33 |  5.08.09    8:21:40
  103 | 01:00000002 | I | External control                                             |  5.08.09    8:21:35 |  5.08.09    8:21:38
  104 | 01:00000040 | I | Analog control                                               |  5.08.09    8:21:35 |  5.08.09    8:21:38
  105 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:21:35 |  5.08.09    8:21:38
  106 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    8:21:40 |  5.08.09    8:22:09
  107 | 01:00000008 | I | Laser ready                                                  |  5.08.09    8:22:12 |  5.08.09    8:30:10
  108 | 01:00001000 | I | Main power supply ON                                         |  5.08.09    8:22:12 |  5.08.09    8:30:10
  109 | 01:00000002 | I | External control                                             |  5.08.09    8:23:23 |  5.08.09    8:24:02
  110 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:23:23 |  5.08.09    8:24:02
  111 | 01:00000002 | I | External control                                             |  5.08.09    8:24:03 |  5.08.09    8:24:05
  112 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:24:03 |  5.08.09    8:24:05
  113 | 01:00000002 | I | External control                                             |  5.08.09    8:24:07 |  5.08.09    8:24:09
  114 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:24:07 |  5.08.09    8:24:09
  115 | 01:00000002 | I | External control                                             |  5.08.09    8:24:10 |  5.08.09    8:24:44
  116 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:24:10 |  5.08.09    8:24:44
  117 | 01:00000002 | I | External control                                             |  5.08.09    8:24:45 |  5.08.09    8:25:18
  118 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:24:45 |  5.08.09    8:25:18
  119 | 01:00000002 | I | External control                                             |  5.08.09    8:25:19 |  5.08.09    8:25:52
  120 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:25:19 |  5.08.09    8:25:52
  121 | 01:00000002 | I | External control                                             |  5.08.09    8:25:53 |  5.08.09    8:26:26
  122 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:25:53 |  5.08.09    8:26:26
  123 | 01:00000002 | I | External control                                             |  5.08.09    8:26:50 |  5.08.09    8:27:29
  124 | 01:00000040 | I | Analog control                                               |  5.08.09    8:26:50 |  5.08.09    8:27:29
  125 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:26:50 |  5.08.09    8:27:29
  126 | 01:00000002 | I | External control                                             |  5.08.09    8:27:30 |  5.08.09    8:28:04
  127 | 01:00000040 | I | Analog control                                               |  5.08.09    8:27:30 |  5.08.09    8:28:04
  128 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:27:30 |  5.08.09    8:28:04
  129 | 01:00000002 | I | External control                                             |  5.08.09    8:28:05 |  5.08.09    8:28:39
  130 | 01:00000040 | I | Analog control                                               |  5.08.09    8:28:05 |  5.08.09    8:28:39
  131 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:28:05 |  5.08.09    8:28:39
  132 | 01:00000002 | I | External control                                             |  5.08.09    8:28:40 |  5.08.09    8:29:13
  133 | 01:00000040 | I | Analog control                                               |  5.08.09    8:28:40 |  5.08.09    8:29:13
  134 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:28:40 |  5.08.09    8:29:13
  135 | 01:00000002 | I | External control                                             |  5.08.09    8:29:14 |  5.08.09    8:29:47
  136 | 01:00000040 | I | Analog control                                               |  5.08.09    8:29:14 |  5.08.09    8:29:47
  137 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:29:14 |  5.08.09    8:29:47
  138 | 01:00000080 | I | Emission enable                                              |  5.08.09    8:29:54 |  5.08.09    8:30:02
  139 | 01:40000000 | I | Laser "Standby"                                              |  5.08.09    8:30:10 |  5.08.09    8:32:32
  140 | 01:00000008 | I | Laser ready                                                  |  5.08.09    8:32:35 |  5.08.09    8:40:34
